Ramp Conveyor implementation

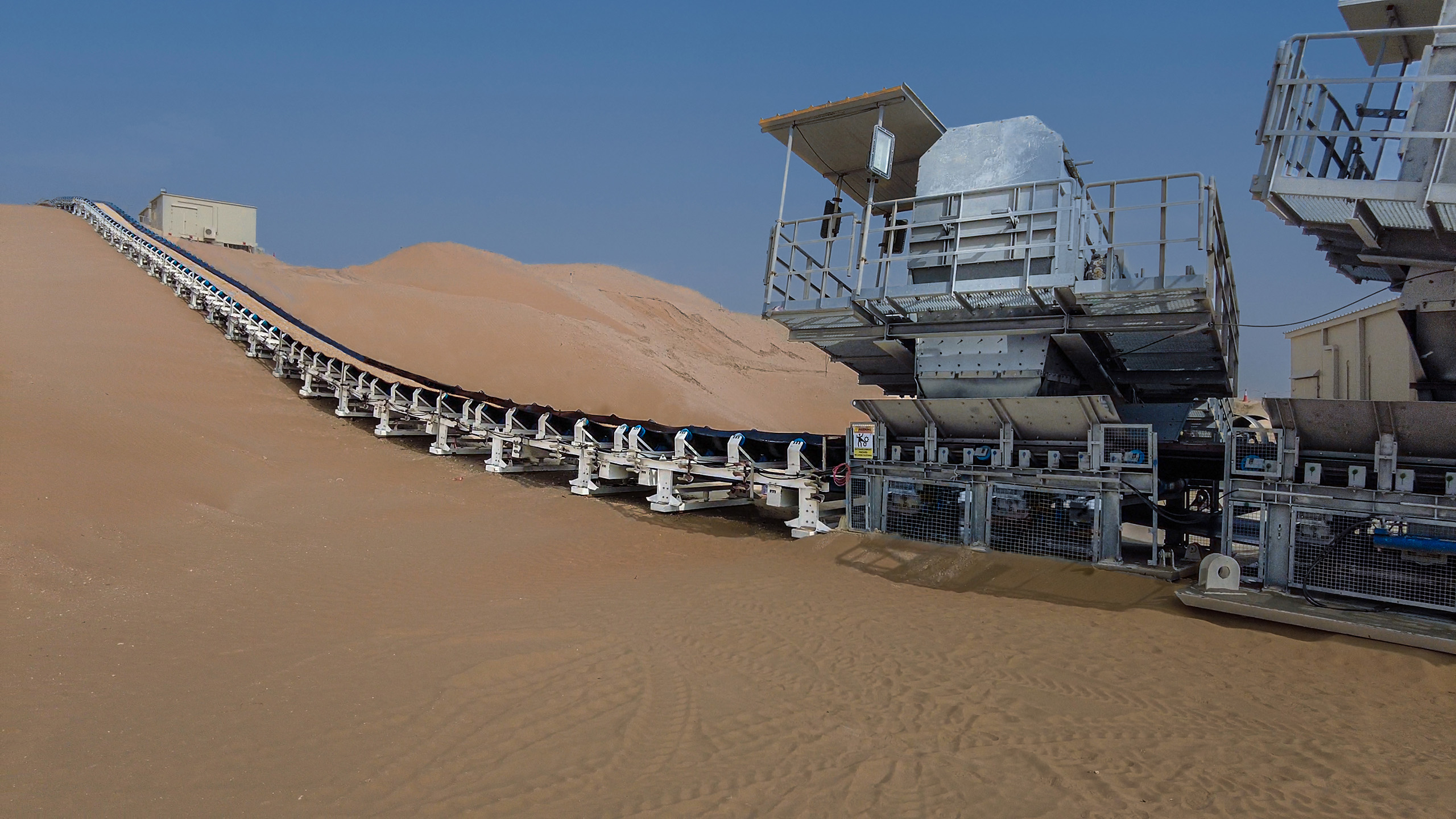

MCI supplied the client with a new 400m Ramp Conveyor System with a capacity of 10.000 m³ per hour. Requirement was to design the conveyor system to reach an elevation hight of 100m. This is achieved by 4x 500kw Motors mounted on the large Power Station on the head. The conveyor system will be fed by two separate lines Krupp Bucket Wheel Excavators C4500 and has therefore two hoppers at the tail.

400m Ramp Conveyor System
Material: gravel, sand

Scope of work

Delivery and transport
Ramp up and Performance testing
Training of Operators
Spare and Ware Part Service
Design and engineering
Fabrication and procurement
